Solar Powered Moisture Based/Timer Auto Irrigation System

2015-08-04
  • Model: GG-004C Series
  • Recommended Application: Suitable for irrigation in farmland, backyard vegatables, home gardens and greenhouse.
  • Package weight:7KG
  • Click hereto download installation video.
Product introduction<div

General Description:

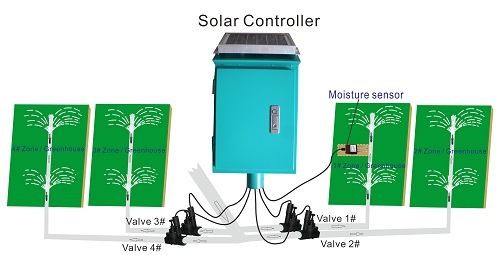

Moisture Controlled Solar Powered auto irrigation systems GG-004 can control up to 4 valves. When at moisture based mode, the moisture sensor periodically

collect moisture samples from the field to the controller. The controller will do analysis and

decide to open/close the valve if need.When first zone is been irrigated, the controller will record

irrigation length, then repeat to other 3 zones. Optimize irrigation, reduce initial setup cost. It is

an stand alone controller with green solar power, will reduce cost and protect environment. This

low carbon and sustainable system is very good for area which has no enough water pressure, or

for uniform garden、golf course、residence community.


The Solar controller with painted stainless steel box or painted zinc plated iron box
PictureStandard packageAdd to Cart

GG-004C-1

Moisture sensor(1); Solar controller with stainless box(1); 1" Plastic latching valve(1); 12V, 2300mAh battery(1)

 Price: $510.94

 With Valve Type:

GG-004C-2

Moisture sensor(1); Solar controller with steel box(1); 1" Plastic latching valve(1); 12V, 2300mAh battery(1)

 Price: $342.13

 With Valve Type:

Features:

l Can select "Moisture Control" or "Timer Control" mode.
l Solar powered, low carbon green power, solid box, great for outdoor applications.
l Controls opening/closing of up to 4 valves. For big garden or cultivated area with not
enough water pressure for irrigating all at once, and saves setup cost.
l User can choose following valve types: Latching valve, 12V DC valve, relay controlled up to 24V DC valve with
external power supply.
l Can manually open/close valves for emergency.
l Can wire one 12V DC relay to control one pump.
l System is easy to install, easy to use.
l Rugged box shell design, is good looking.

Feature under “Moisture control” mode:
l According to soil sample collected by the built in moisture sensor and the dry/wet control levels setup by user,
to control open/close of the #1 valve, then using the same duration, irrigate the other 3 zones.
l Can apply to any soil type, accurately to keep the soil moisture in the setup range, provides low cost, precise
auto irrigation.
l User can learn, setup and adjust moisture dry/wet control levels according to local condition.
l With build in clock, user can setup periods to forbid irrigation.
l LCD will in sequence show: Current operating mode and system time, 4 valve's status, system operating status
and current moisture %.
l Manual operation for convenience.
l Can setup maximum irrigation length.

Feature under “Timer control” mode:
l Can set up different timer schedules for different valves.
l Can setup three times irrigation schedules for each valve.
l Using the moisture sensor as rain sensor. User can set up maximum wet control level, so when it is reached by
rain, irrigation will end.
l LCD will in sequence show: Current mode and system time, 4 valves irrigation status, moisture level collected
by the rain sensor.

Remark:

Suggested maximum moisture sensor extention cable is 50 meters except moisture sensor for GG-005 series.

Suggested maximum maganetic valve extention cable is 20 meters.

Customer can choose ship from California (USA)
We will send the cargo by UPS, DHL.

More information, please contact us by email, sales@anctech.com

Application:

Accessories:

P/NPictureDescriptionPrice

Mvalve-01

1" Plastic DC latching valve

Working voltage:2.4~6V;

Working current:1A;

Working pressure: 0.069~1.05Mpa, 50 ~ 100ms pulse;

Flow range: 0.23m3/h-1.89m3/h;

Vavle body:Plastic;

Connector size:1" G thread;

    $15.43

Mvalve-02

【 1" Stainless steel DC latching valve】

Working voltage:6V;

Working current:1A;

Working pressure:0.03~1Mpa, 50 ~ 100ms pulse;

Flow range: 0.23m3/h-6.8m3/h;

Vavle body:Stainless steel;

Connector size:1" NPT thread;

$49.88

Mvalve-03

【1.5"Stainless steel DC latching valve】

Working voltage:6V;

Working current:1A;

Working pressure:0.03~1Mpa, 50 ~ 100ms pulse;

Flow range:0.04m3/h-27.2m3/h;

Vavle body:Stainless steel,

Connector size:1" NPT thread;

$151.69

Mvalve-04

【2" Stainless steel DC latching valve】

Working voltage:6V;

Working current:1A;

Working pressure:0.03~1Mpa, 50 ~ 100ms pulse;

Flow range: 0.04m3/h-27.2m3/h;

Vavle body:Stainless steel;

Connector size:2" NPT thread

$160.77

Mvalve-09

【1"  plastic DC latching valveHunter】
Working voltage:2.4~6V,
Working current:1A
Working pressure:0.14-1.5Mpa, 50 ~ 100ms pulse

Flow range:: 0.06~68.1m3/h

Vavle body:Plastic

Connector size:1" NPT thread

$50.11

Mvalve-10

【1.5"  plastic DC latching valveHunter】
Working voltage:2.4~6V,
Working current:1A
Working pressure:0.14-1.5Mpa, 50 ~ 100ms pulse

Flow range:: 0.06~68.1m3/h

Vavle body:Plastic,Medium:water,

Connector size:1.5"NPT thread

$113.79

Mvalve-11

【2"  plastic DC latching valveHunter】
Working voltage:2.4~6V,
Working current:1A
Working pressure:0.14-1.5Mpa, 50 ~ 100ms pulse

Flow range:: 0.06~68.1m3/h

Vavle body:Plastic,

Connector size:2" NPT thread

$149.79

Mvalve-12

【3"  plastic DC latching valveHunter】
Working voltage:2.4~6V,
Working current:1A
Working pressure:0.14-1.5Mpa, 50 ~ 100ms pulse

Flow range:: 0.06~68.1m3/h

Vavle body:Plastic,

Connector size:3" NPT thread

$425.50

Battery-02

【NiMH Rechargeable battery pack with shell

For GG-004C-1; 7.2V, 800mAh

$19.68

Battery-03

【NiMH Rechargeable battery

For GG-004C-2; 7.2V, 800mAh

$16.83

Vcabel-3.7m【Valve cable】Extention cable with connectors for magnetic valve, total 3.7meters (Cable:TC0.15*28S/1.6PVC*2core/OD:5.0PVC)

$2.77

VcabelB-5m【Valve cable】Extention cable with connectors for magnetic valve, total 5 meters (Cable:TC0.15*28S/1.6PVC*2core/OD:5.0PVC)

$3.69

VcabelB-10m【Valve cable】Extention cable with connectors for magnetic valve, total 10 meters (Cable:TC0.15*28S/1.6PVC*2core/OD:5.0PVC)

$6.44

VcabelB-20m【Valve cable】Extention cable with connectors for magnetic valve, total 20 meters (Cable:TC0.15*28S/1.6PVC*2core/OD:5.0PVC)

$11.95

VcabelB-30m【Valve cable】Extention cable with connectors for magnetic valve, total 30 meters (Cable:TC0.15*28S/1.6PVC*2core/OD:5.0PVC)

$17.64

Scable-1-5m【Sensor cable】Extention cable  with connectors for moisture sensor,5 meters  (Cable:TC0.15*28S/1.6PVC*3core/OD:5.0PVC)

$4.07

Scable-1-10mSensor cableExtention cable  with connectors for moisture sensor,10 meters  (Cable:TC0.15*28S/1.6PVC*3core/OD:5.0PVC)

$7.21

Scable-1-20mSensor cableExtention cable  with connectors for moisture sensor,20 meters  (Cable:TC0.15*28S/1.6PVC*3core/OD:5.0PVC)

$13.59

Scable-1-30mSensor cableExtention cable  with connectors for moisture sensor,30 meters  (Cable:TC0.15*28S/1.6PVC*3core/OD:5.0PVC)

$19.92

Scable-1-50mSensor cableExtention cable  with connectors for moisture sensor,50 meters  (Cable:TC0.15*28S/1.6PVC*3core/OD:5.0PVC)

$32.33

Msensor-02【Moisture Sensor】

$98.00

Pump Relay-01A【380V pump relay】

$48.87

Pump Relay-01B【220V pump relay

$48.87

Spanel-03

【Solar panel

With 1.5meters calbe;17.4V/3.8W. For GG-004C-1

$30.09
