Wireless, Solar powered 4 valves field controller

2015-09-15
  • Model: MS4V Series
  • Recommended Application: Suitable for irrigation of large areas such as maize fields, orchards,landscape wheat and vegetables.Match with GG-002C/D main controller.
  • Package Weight: 7KG
Product introduction

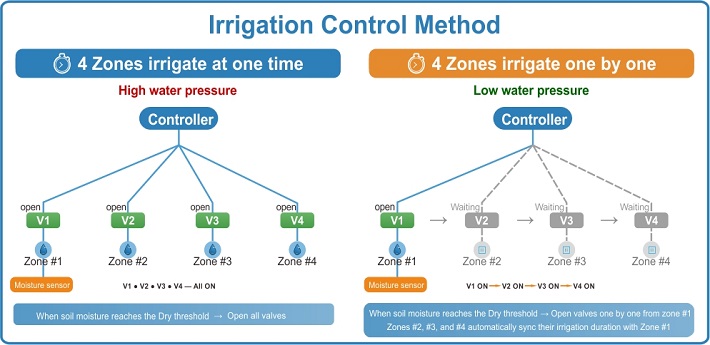

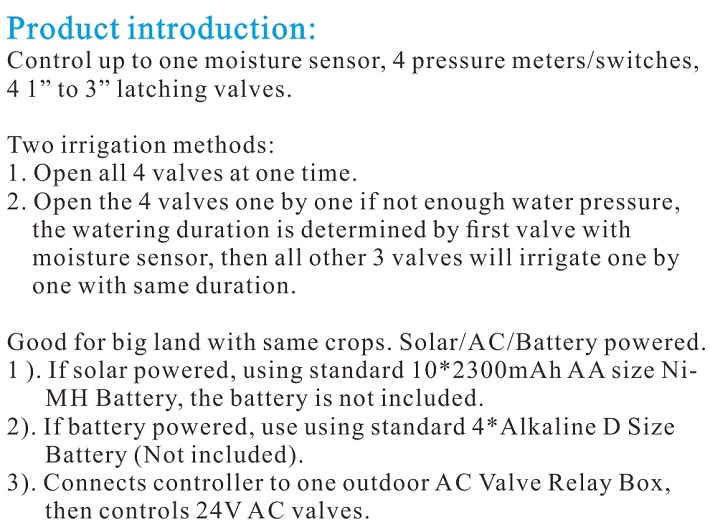

Control up to one moisture sensor, 4 pressure meters/switches, 4 1” to 3” latching valves. Can one time to open all 4 valves, or open the valves one by one if not enough water pressure, the watering duration is determined by first valve with moisture sensor, then all other 3 valves will irrigate one by one with same duration. Good for big land with same crop.Solar/AC/Battery powered.

1 ). If solar powered, using standard 10*2300mAh AA size Ni-MH Battery, the battery is not included.

2). If battery powered, use using standard 4*Alkaline D Size Battery (Not included).

3). Connects controller to one outdoor AC Valve Relay Box, then controls 24V AC valves.

ModelPictureDescription
MS4V-Solar-MB

Wireless field  Controller/Relay with metal box.

Control up to: 4 (1"~3") latching valves

                      4 pressure switch/meter

                      1 moisture sensor

Using standard 10*2300mAh AA Size Ni-MH Battery (Not included) Solar powered; Connects controller to one outdoor AC Valve Relay Box, then controls 24V AC valves.

MS4V-Bat

Control up to: 4(1"~3") latching valves

                      4 pressure switch/meter

                      1 moisture sensor

Good for indoor. Using standard 4*Alkaline D Size Battery (Not included).Battery powered; Connects controller to one outdoor AC Valve Relay Box, then controls 24V AC valves.

MS4V-AC

Control up to: 4(1"~3") latching valves

                     4 pressure switch/meter

                     1 moisture sensor.

Good for indoor. AC Powered; Connects controller to one outdoor AC Valve Relay Box, then controls 24V AC valves.

Product features:

1. Controller is solar powered.
2. Only need one key push to setup Dry/Wet control threshold. Very easy to use.
3. Has manual key to manually open/close valves for the convenience of field operation and maintain.
4. With pressure meter installed to check valve open/close abnormal, alarm to main controller if there is failure.
5. This controller also function as relay. The built in bidirectional wireless distance can reach 4000m/0.62miles through mesh network.
6. The moisture sensor can bury deep in the soil.
7. If there is not enough solar power, the controller will turn off valve first, then turn self-off, recharging , and wake up automatically after recharged.
8. Field controllers in the range will automatically setup mesh network route to communicate with main controller.
9. This controller can work for almost one month under rain/cloudy days.

Specifications:
Solar panels:  17.4V DC /220mA/3.8W
Back-up battery: 10*1.2V/ 2.3AH AA Size
Quiescent current: 1mA
Frequency: 902-928 MHZ
Communication distance at open space: 0.62miles
Working environment: Temperature [-30~60℃]; Humidity [<90%]
<!90%]
Lasting time of fully charged battery: 7 days without sun
Battery charging time: 10 hours under standard illumination
Moisture sensor:
  1, Output: pulse signal
  2, Moisture Range:  0-99%
  3, Precision: 1%
  4. Sample soil moisture frequency:
  A. Push scan key immediately take sample, normally take soil sample every 5 minutes under irrigation, otherwise 30 minutes.
  B. When exit from setup, controller will take sample once.
  C. When at adjusting Dry/Wet control menu, take sample every 0.5 second.
Solenoid valve:
  1, Output: pulse signal
  2, DC6-12V
Pressure Meter:
 1, Pressure range:0.06Mpa-0.6Mpa; 0.1Mpa-1.3Mpa
 2, Thread:1/2,1/4,1/8 NPT can be choosed.

Remark:

1.Suggested maximum pressure meter extention cable is 50 meters.

2.Suggested maximum maganetic valve extention cable is 20 meters.
3.Suggested maximum moisture sensor extention cable is 50 meters except moisture sensor for GG-005 series.

Applicaiton:

Applicaiton 1:

Applicaiton2:

Applicaiton3:

Accessories:

P/NPictureDescriptionPrice

Mvalve-01

1" Plastic DC latching valve

Working voltage:2.4~6V;

Working current:1A;

Working pressure: 0.069~1.05Mpa, 50 ~ 100ms pulse;

Flow range: 0.23m3/h-1.89m3/h;

Connector size:1" NPT thread;

    $15.43

Mvalve-09

【1"  plastic DC latching valveHunter】
Working voltage:2.4~6V,
Working current:1A
Working pressure:0.14-1.5Mpa, 50 ~ 100ms pulse

Flow range:: 0.06~68.1m3/h

Connector size:1" NPT thread

$50.11

Mvalve-10

【1.5"  plastic DC latching valveHunter】
Working voltage:2.4~6V,
Working current:1A
Working pressure:0.14-1.5Mpa, 50 ~ 100ms pulse

Flow range:: 0.06~68.1m3/h

Connector size:1.5"NPT thread

$113.79

Mvalve-11

【2"  plastic DC latching valveHunter】
Working voltage:2.4~6V,
Working current:1A
Working pressure:0.14-1.5Mpa, 50 ~ 100ms pulse

Flow range:: 0.06~68.1m3/h

Connector size:2" NPT thread

$149.79

Mvalve-12

【3"  plastic DC latching valveHunter】
Working voltage:2.4~6V,
Working current:1A
Working pressure:0.14-1.5Mpa, 50 ~ 100ms pulse

Flow range:: 0.06~68.1m3/h

Connector size:3" NPT thread

$425.50

Msensor-02【Moisture sensor】

$98.00

VcabelB-5m

Extention cable with connectors for valve,  5 meters

Cable:TC0.15*28S/1.6PVC*2core/OD:5.0PVC

$3.69

VcabelB-10m

Extention cable with connectors for valve,  10 meters

Cable:TC0.15*28S/1.6PVC*2core/OD:5.0PVC

$6.44

VcabelB-20m

Extention cable with connectors for valve,  20 meters

Cable:TC0.15*28S/1.6PVC*2core/OD:5.0PVC

$11.95

Scable-1-5m

Extention cable  with connectors for moisture sensor,5 meters

Cable:TC0.15*28S/1.6PVC*3core/OD:5.0PVC

$4.07

Scable-1-10m

Extention cable  with connectors for moisture sensor,10 meters

Cable:TC0.15*28S/1.6PVC*3core/OD:5.0PVC

$7.21

Scable-1-20m

Extention cable  with connectors for moisture sensor,20 meters

Cable:TC0.15*28S/1.6PVC*3core/OD:5.0PVC

$13.59

Scable-1-30m

Extention cable  with connectors for moisture sensor,30 meters

Cable:TC0.15*28S/1.6PVC*3core/OD:5.0PVC)

$19.92

Scable-1-50m

Extention cable  with connectors for moisture sensor,50 meters

Cable:TC0.15*28S/1.6PVC*3core/OD:5.0PVC

$32.33

Pressure Meter-02

Pressure meter, 1/4" NPT thread

Range:0~1Mpa

Output:4..20MA Accuracy

grade:0.2% FS

Scope of supply:12/36 VDC

$61.9

Antenna-04

【Antenna-915MHZ

Frequece range:915MHz

Frequnce bandwidth: 100MHz3

Gain: 2.5dBi6

$4.47

Ccable

Coaxial cable 1.5 meters plus two connectors

$4.18

Adapter-02

100V-240V/12V 2A AC Adaptor

Cable long 1.5m

$5.34

AC Relay Box

Match with all ANC wireless/alone irrigation

controllers to control up 24V AC valves.

$73.74

Battery-03
NiMH Rechargeable battery 12V, 2300mAh

$24.4
