2 rolling machine 2 valves wireless field controller
- Model: 1MS1T2V2R
- Recommended Application: Suitable for greenhouse with roll film, control open/close rolling machine,wireless controller match with GG-002C/D
- Package Weight: 2KG
Product introduction:
This wireless field controller compatible with ANC control system GG-002C/D. Powered by solar panel with2*12V/ 20AH lead-acid battery, also can using AC power through power supply. This controller control two latching valve, two pressure meter/switch to check valve open/close status, one moisture sensor, two rolling machines and one air temperature sensor. Can collect soil moisture and air temperature, control valves and rolling machines. With LCD. Communicate with main controller wirelessly, no need of power and WIFI in the field, easy to operate and maintain, very reliable. Good for greenhouse and Grow seedlings agriculture application.
Product features:
1.Controller is solar or AC powered.
2. Will roll up the film for ventilation if air temperature is higher than the Max temperature limit.
3. Will roll down film to cover the roof to prevent temperature drop if air temperature is lower than the low temperature limit.
4. User can control angle/shadow of the greenhouse cover film by setting different time length of the rolling for opening / closing.
5.When soil moisture is lower than the set Dry control level, will open the valve for irrigation; When the soil moisture reached or higher than the Wet control level, will close the valve to stop irrigation.
6. Pressure detector can be installed behind valve to detect whether the valve is open / closed normally.

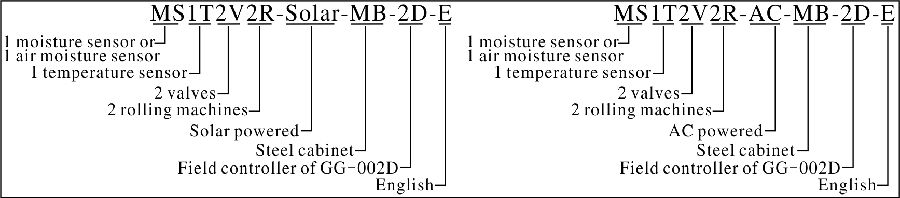

How to order
| Model | Picture | Description | ||
| 1MS1T2V2R |  | Control up to: 1 moisture sensor 1 air temperature sensor 2 latching valve(1"~3") 2 presure switch/meter 2 Rolling machine Solar powered. Using standard 10*2300mAh AA Size Ni-MH Battery (Not included) . Connects controller to one outdoor AC Valve Relay Box, then controls 24V AC valves. | ||
Suggested maximum maganetic valve extention cable is 20 meters.
Suggested maximum moisture sensor extention cable is 50 meters except moisture sensor for GG-005 series.
Accessories：
| P/N | Picture | Description | Price |
| SpanelC-01 |  | Solar power manage system for outdoor controller without AC power available. Battery: 12V/20Ah, Lead-acid battery. Solar Panel: 18V/40W; Current,2.22A; Open circuit voltage, 21.6V; Short circuit current, 2.45A. Solar Control Adapter: 12V/10A. | $293
|
Mvalve-01 |  | 【1" Plastic DC latching valve Yaofeng】 Working voltage:6~40V; Working pressure: 0.05~0.6Mpa, Flow range: 3.8~113.6 L/min; Connector size:1" NPT thread； | $15.43
|
Mvalve-09 |  | 【1" plastic DC latching valve Hunter】 Working voltage:9-20V Working pressure：1.5~15.0bar, 150 ~ 1000kPa Flow range: 0.06~9m3/h Connector size:1" NPT thread | |
Mvalve-10 | | 【1.5" plastic DC latching valve Hunter】 Working voltage:9-20V Working pressure：1.5~15.0bar; 150 ~ 1000kPa Flow range:: 4~34m3/h Connector size:1.5"NPT thread | |
Mvalve-11 | | 【2" plastic DC latching valve Hunter】 Working voltage:9-20V Working pressure：1.5~15.0bar, 150 ~ 1000kPa Flow range: 9~45 m3/h Connector size:2" NPT thread | |
Mvalve-12 | | 【3" plastic DC latching valve Hunter】 Working voltage:9-20V Working pressure：1.5~15.0bar, 150 ~ 1000kPa Flow range: 34~68 m3/h Connector size:3" NPT thread | |
| AIR TEMP/HUM-01 |  | Temperature range: - 40 ~60 ℃ Humidity range: 0-100% RH Power Voltage: 9 ~ 36VDC Temperature Precision: +/- 0.5 ℃ Humidity Precision: +/- 3% RH Protection Level: IP65 Output signal: RS485 | $185.00
|
| AIR TEMP/HUM-02 |
| Temperature range: - 40 ~60 ℃ Humidity range: 0-100% RH Power Voltage: 9 ~ 36VDC Temperature Precision: +/- 0.5 ℃ Humidity Precision: +/- 5% RH Protection Level: IP65 Output signal: RS485 | $140.00
|
| Msensor-02 |  | 【Moisture sensor】 | $98.00
|
| VcabelB-5m |  | Extention cable with connectors for valve, 5 meters Cable: 2core | $3.69
|
| VcabelB-10m | | Extention cable with connectors for valve, 10 meters Cable: 2core | $6.44
|
| VcabelB-20m | | Extention cable with connectors for valve, 20 meters Cable: 2core | $11.95
|
| Scable-1-5m | | Extention cable with connectors for moisture sensor,5 meters Cable: 3core | $4.07
|
| Scable-1-10m | | Extention cable with connectors for moisture sensor,10 meters Cable: 3core | $7.21
|
| Scable-1-20m | | Extention cable with connectors for moisture sensor,20 meters Cable: 3core | $13.59
|
| Scable-1-30m | | Extention cable with connectors for moisture sensor,30 meters Cable: 3core | $19.92
|
| Scable-1-50m | | Extention cable with connectors for moisture sensor,50 meters Cable: 3core | $32.33
|
| Pressure Meter-02 |  | Pressure meter, 1/4" NPT thread Range:0~1Mpa Output:4..20MA Accuracy grade:0.2% FS Scope of supply:12/36 VDC | $61.9
|
| Antenna-04 |
| 【Antenna-915MHZ】 Frequece range:915MHz Frequnce bandwidth: 100MHz3 Gain: 2.5dBi6 | $4.47
|
| Ccable |  | Coaxial cable 1.5 meters plus two connectors | $4.18
|
| AC Relay Box |  | Match with all ANC wireless/alone irrigation controllers to control up 24V AC valves. | $73.74
|
| ADAPTER-01 |  | 24V/20A | $90
|
| Battery-10 |  | 12V/20Ah Sealed Lead-acid battery | $68
|
| Screen Rolling Machines-01 |  | Screen Rolling Machines, control 40 meters | $102
|
