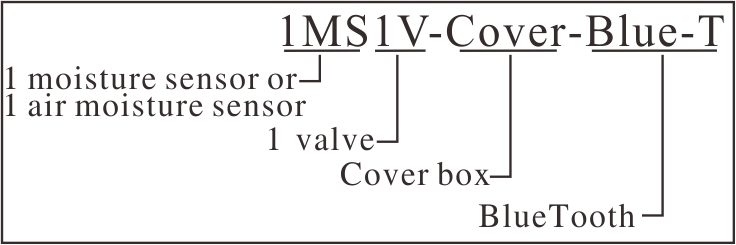

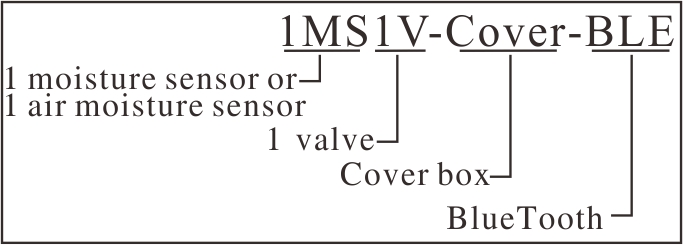

How to order:

Product description:

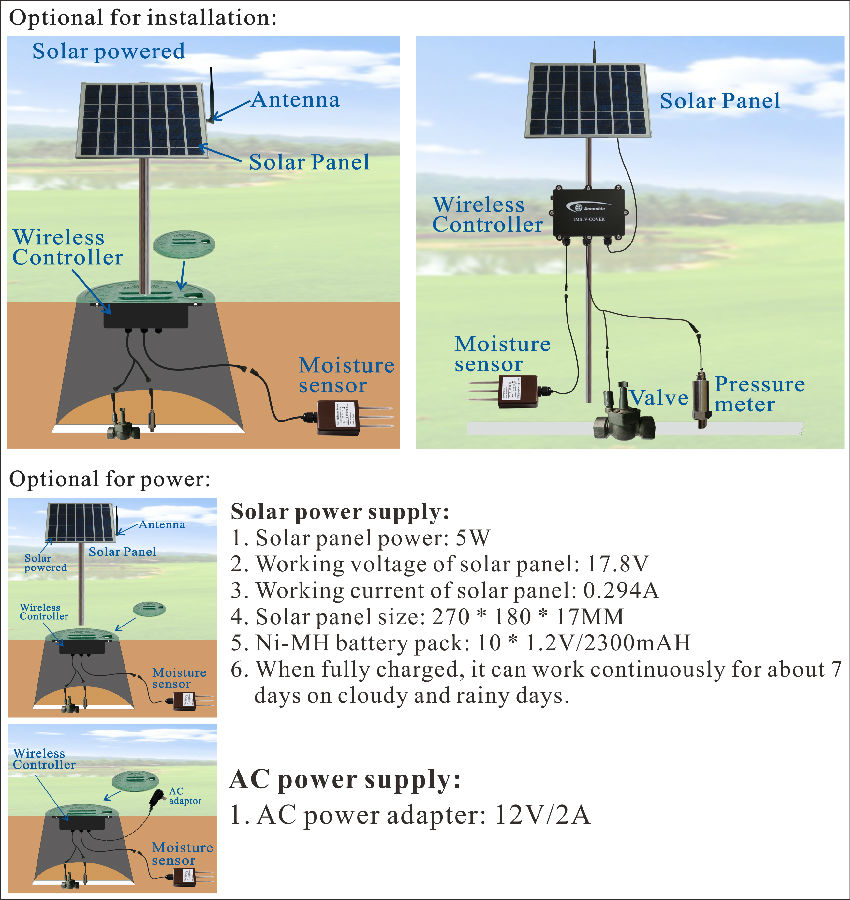

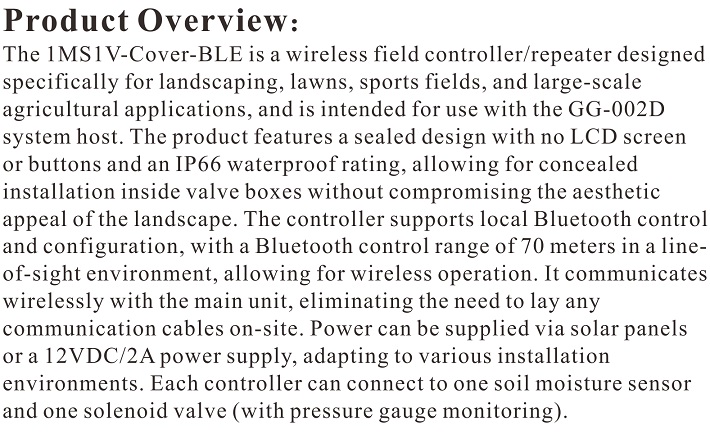

This is a wireless outdoor field controller that can be controlled through Bluetooth. Can control 1 soil moisture sensor, 1 valveand 1 valve pressure meter, no LCD or keys, with good sealing performance. Optional for solar powered (solar panel+rechargeablebattery pack) or AC powered. Working match with GG002D main controller, and wireless communication between the field controller and main controller. No need of additional wiring. Easy to operate, reliable in control, suitable for installed inside valve box in gardens, lawns, sports fields, and large-scale agricultural automatic irrigation.

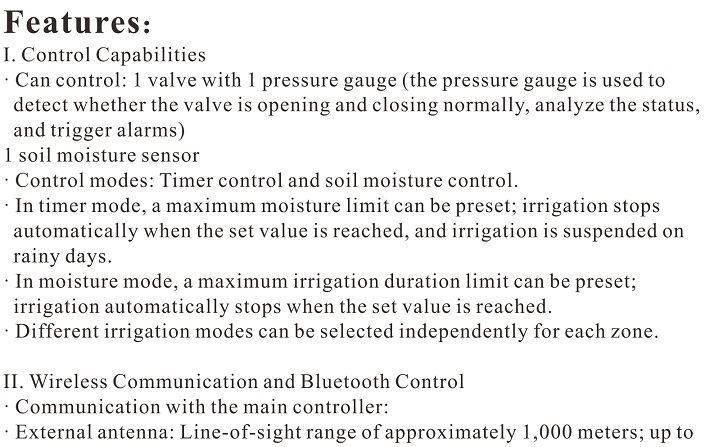

Good Features:

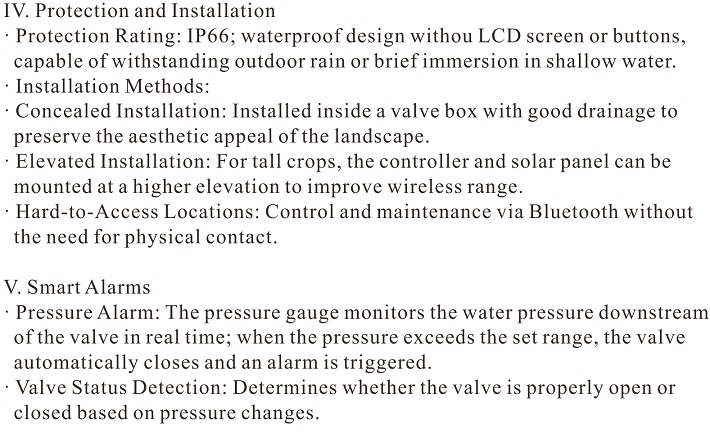

1. Designed for landscape, it can be installed in well drained valve boxes without affecting the aesthetics of the garden; It can also be visually installed on the ground, installed in inconvenient locations. When need maintenance, users can operate it through Bluetooth mobile phones through the wall, and the usage scenarios are diverse.

2. Designed for landscape, it can be installed in well drained valve boxes without affecting the aesthetics of the garden; It can also be visually installed on the ground, installed in inconvenient locations. When need maintenance, users can operate it through Bluetooth mobile phones through the wall, and the usage scenarios are diverse.

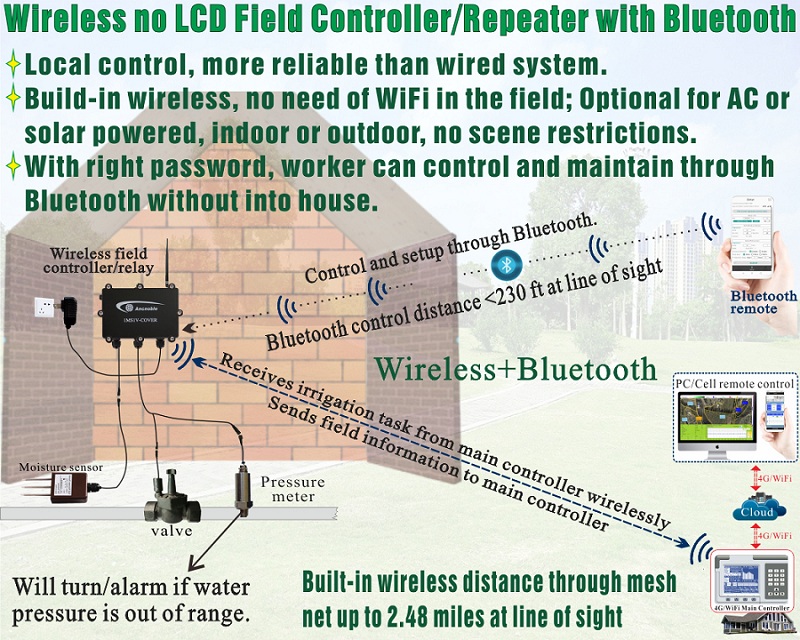

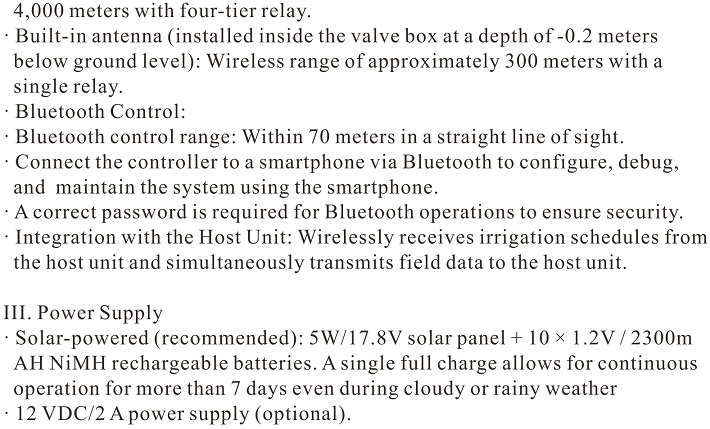

3. When using an external antenna, the visible distance for wireless communication between the host and the antenna is 1000 meters, and after four layers of relay, it can reach 4000 meters; If a built-in antenna is used and installed inside the valve box at a depth of -0.2M from the ground, the wireless distance can reach 300 meters; Please refer to the wireless distance parameters in the following figure fordetails.

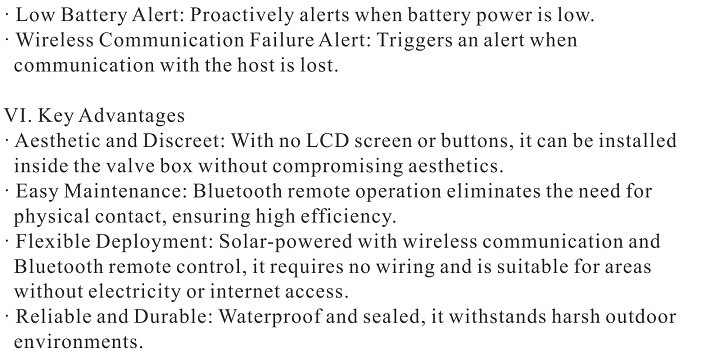

4. No LCD, no keys, water proof.Waterproof rating up to IP66, able to withstand outdoor rain or short-term immersion in shallow water. Built in wireless relay function, increasing wireless distance.

5. Timer+Max moisture limit control mode, automatically stops irrigation when the Maximum moisture limit value is reached, avoid wasting water resources.

6. Automatically adjusting irrigation duration seasonallyto optimize water usageto save water.

7. Control up to:

   1 moisture sensor

   1 valve

   1 pressure meter, used to check whether the valve switch is normal.

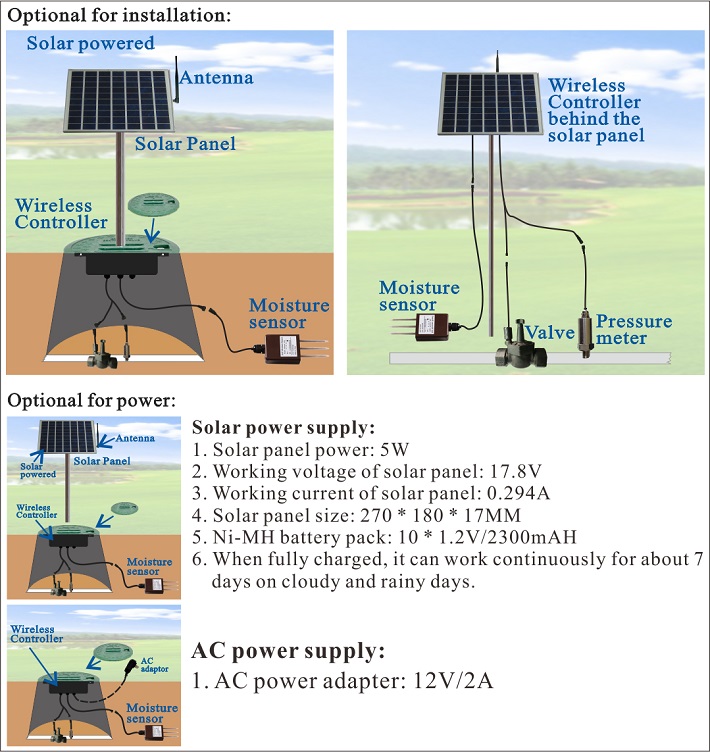

8. Long continuous working time, powered by solar panels and nickel hydrogen rechargeable batteries (battery pack), can work continuously for more than 7 days on rainy days.

9. Match with GG-002D main controller

Picture		Description	Standard Package
		Controlls up to:   1 latching valve (1"~3")   1 moisture sensor   1 pressure switch/meters Power: Using standard 2300mAh AA Size Ni-MH Battery (Not included), solar powered. Or AC  powered.	1. Controller(1) 2. 915Mhz antenna(1)

Accessories：

P/N	Picture	Description	Price
Mvalve-01		【1" Plastic DC latching valve    Yaofeng】 Working voltage:6~40V; Working pressure: 0.05~0.6Mpa, Flow range: 3.8~113.6 L/min; Connector size:1" NPT thread；	$15.43
Mvalve-09		【1"  plastic DC latching valve    Hunter】 Working voltage:9-20V Working pressure：1.5~15.0bar, 150 ~ 1000kPa Flow range: 0.06~9m3/h             Connector size:1" NPT threa
Mvalve-10		【1.5"  plastic DC latching valve  Hunter】 Working voltage:9-20V Working pressure：1.5~15.0bar; 150 ~ 1000kPa Flow range:: 4~34m3/h             Connector size:1.5"NPT thread
Mvalve-11		【2"  plastic DC latching valve   Hunter】 Working voltage:9-20V Working pressure：1.5~15.0bar, 150 ~ 1000kPa Flow range: 9~45 m3/h             Connector size:2" NPT thread
Mvalve-12		【3"  plastic DC latching valve   Hunter】 Working voltage:9-20V Working pressure：1.5~15.0bar, 150 ~ 1000kPa Flow range: 34~68 m3/h             Connector size:3" NPT thread
Msensor-02		【Moisture sensor】	$98.00
VcabelB-5m		Extention cable with connectors for valve,  5 meter Cable: 2core	$3.69
VcabelB-10m		Extention cable with connectors for valve,  10 meters Cable: 2core	$6.44
VcabelB-20m		Extention cable with connectors for valve,  20 meters Cable: 2core	$11.95
Scable-1-5m		Extention cable  with connectors for moisture sensor,5 meters Cable: 3core	$4.07
Scable-1-10m		Extention cable  with connectors for moisture sensor,10 meters Cable: 3core	$7.21
Scable-1-20m		Extention cable  with connectors for moisture sensor,20 meters Cable: 3core	$13.59
Scable-1-30m		Extention cable  with connectors for moisture sensor,30 meters Cable: 3core	$19.92
Scable-1-50m		Extention cable  with connectors for moisture sensor,50 meters Cable: 3core	$32.33
Pressure Meter-02		Pressure meter, 1/4" NPT thread Range:0~1Mpa Output:4..20MA Accuracy grade:0.2% FS Scope of supply:12/36 VDC	$61.9
Antenna-04		Antenna-915MHZ Frequece range:915MHz Frequnce bandwidth: 100MHz3 Voltage standing wave ratio: ≤1.55 Gain: 2.5dBi6	$4.47
Ccable		Coaxial cable 1.5 meters plus two connectors	$4.18
Spanel-04		Size: 270*180*17mm Specification: 17.8v/5w Sued for 1MS1V-cover	$17.60
SpanelH-04		Solar panel holder, sued for Spanel-04	$11.2
Battery-12		Standard voltage: 3.6V Capacity: 19000Mah	$12.4
Battery-03		NiMH Rechargeable battery 12V, 2300mAh	$24.4
AC Relay Box		Match with all ANC wireless/alone irrigation controllers to control up 24V AC valves.	$73.74
