Description:

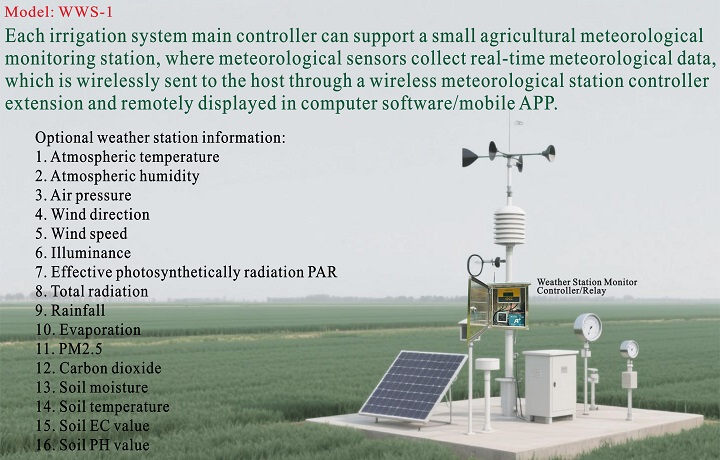

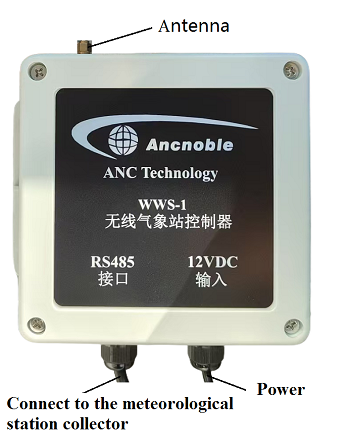

WWS-1 is a wireless weather controller in the GG-002D smart irrigation system, serving as the meteorological data hub responsible for collecting and transmitting real-time weather information. This wireless controller reads data from the weather station data collector via an RS485 interface and wirelessly transmits various meteorological elements to the GG-002D system main controller. Featuring an integrated design, it shares the 12VDC power supply of the weather station and can be directly installed inside the weather station control cabinet, offering excellent adaptability to outdoor environments. Each GG-002D main controller can connect to a small agricultural weather monitor station, enabling real-time collection and wireless transmission of meteorological data, which is ultimately displayed remotely via computer software or a mobile APP.

Product Features:

1. It can be wirelessly registered to the GG-002D main controller as a standard meteorological data collection unit in the system, enabling rapid network formation.

2. Stably acquire data from the meteorological station data collection box via the RS485 interface, ensuring the accuracy and integrity of on-site meteorological information.

3. Supports solar power supply, energy-saving and environmentally friendly, suitable for scenarios without mains electricity or outdoor installation.

4. Wireless communication with system main controller, the visual communication distance up to 1,000m/0.62miles.

5. This controller also function as relay. The built in bidirectional wireless distance can reach 4000m/2.48miles through mesh network.

6. Supports the collection of 16 environmental elements, including:

Atmospheric Environment: Temperature, Humidity, Air Pressure, Wind Direction, Wind Speed, PM2.5, Carbon Dioxide

 Light radiation: Illuminance, effective photosynthetically radiation (PAR), total radiation

 Water conditions: rainfall, evaporation rate, soil moisture

 Soil parameters: soil temperature, soil EC value, soil pH value

7. Specifically designed for the GG-002D intelligent Irrigation System, it is the ideal choice for achieving precise irrigation and intelligent agricultural management.

Accessories：

Model	Picture	Description	Price
wind speed sensor		Measurement range 0~70m/s, accuracy ± (0.3+0.03V) m/s (V is wind speed), resolution 0.1m/s, starting wind speed ≤ 0.5m/s.
wind direction sensor		Measurement range: 0~359 °, accuracy: ± 3 °, resolution: 1 °, starting wind speed: ≤ 0.5m/s.
Air temperature sensor		Measurement range -50~100 ℃, accuracy ± 0.5 ℃, resolution 0.1 ℃.
Air humidity sensor		Measurement range 0~100% RH, accuracy ± 5% RH, resolution 0.1% RH.
Atmospheric pressure sensor		The measurement range is 500-1100hPa, with an accuracy of ± 0.3hPa and a resolution of 0.1hPa.
rainfall sensor		The diameter of the water carrying capacity is 200 ± 0.6mm, the measurement range is 0-4mm/min (rainfall intensity), the accuracy is ± 4% (indoor static test, rainfall intensity is 2mm/min), and the resolution is 0.2mm.
Light intensity sensor		Measurement range 0~200000 Lux, accuracy ± 7%, resolution 10 Lux.
Photosynthetically active radiation sensor		The spectral range is 400~700nm, the measurement range is 0~2000W/m2, the accuracy is ± 5%, and the resolution is 1W/m2.
Soil temperature sensor		Measurement range -50~100 ℃, accuracy ± 0.5 ℃, resolution 0.1 ℃.
Soil moisture sensor		Measurement range 0~100% RH, accuracy ± 5% RH, resolution 0.1% RH.
Soil conductivity sensor		Measurement range: 0-10000 μ s/cm, accuracy: ± 5%, resolution: 1 μ s/cm.
Soil pH sensor		Measurement range: 0~14pH, accuracy: ± 0.1pH, resolution: 0.01pH.
PM2.5 sensor		Measurement range: 0-1000ug/m3, measurement accuracy: ± 20%, resolution: 1ug/m3.
Carbon dioxide sensor		Measurement range 0-2000ppm, resolution 1ppm, accuracy ± 20.
total solar radiation		Measurement range 0-2000W/m2, resolution 1W/m2, accuracy ± 5%.
Evaporation sensor		Measurement range 0-1000mm, resolution 0.1mm, accuracy ± 5%.
Ccable		GSM shielded extension cable 1.5 meters with connector.	$4.18
Antenna-04		915MHz antenna with active connection Frequency: 915MHz; Bandwidth: 100MHz; Gain: 2.5dBi; Working temperature: -40~60 ° C;	$4.47
