Product Description:

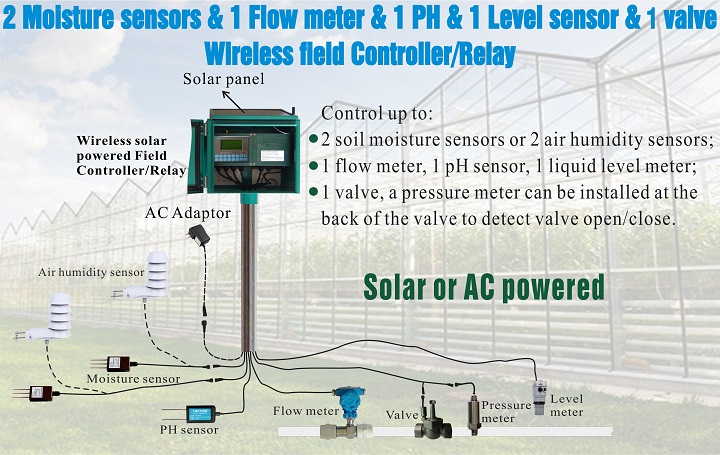

This is a comprehensive wireless field controller under the control of the ANC intelligent irrigation system main controller GG002D. It controls up to: 2 soil moisture sensors, 1 flow meter, 1 PH sensor, 1 liquid level sensor, 1 valve+1 pressure meter (valve switch detection). Equipped with an LCD display, it communicates wirelessly with the main controller, eliminating the need for additional wiring. Simple to operate and reliable in control, it is suitable for large-scale agricultural automatic irrigation.

Good Features:

1. Bidirectional wireless communication, powered by solar panel + rechargeable 12V/2300mA battery, or AC power. No power cables or WiFi coverage required in the field, with low installation and maintenance costs.

2. The bidirectional wireless communication range is 1000M/0.62miles, with a builtin relay function. Through relay, the wireless distance can up to 4000M/2.48miles.

3. It can control two soil moisture sensors to detect soil temperature and humidity, which can be buried at different soil depths to meet the irrigation needs of various crops. The shallow soil moisture sensor is more sensitive to rainfall, while the deep soil moisture sensor can monitor whether watering has penetrated thoroughly.

4. The soil PH sensor continuously monitors and transmits soil PH values to the main controller to track soil acidity and alkalinity.

5. Control up one flow meter, installed in the irrigation zone, to monitor water usage in real time. Four types of flow meters are available: 4-20mA flow meter, three-wire pulse flow meter, two-wire pulse flow meter, and three-wire Hall flow meter.

6. Preset liquid level meter: When the detected liquid level exceeds the set range, the valve automatically opens/closes to store or discharge water, maintaining the liquid level within the set range. Three types of level meter are available for flexible user selection: ultrasonic level meter, static pressure level meter, and level switch.

7. A pressure meter can be installed at the rear of the valve. Once the detected water pressure out of the range, the valve will close and trigger an alarm notification to the user's email or APP.

8. With an LCD screen and an operation panel, which can be installed inside a metal box, allowing direct operation via buttons on the controller.

9. Used as a field wireless field controller in the ANC intelligent irrigation system, not intended for standalone operation.

Model	Picture	Description
2MS1F1PH1L1V-Solar-MB		Control up to: 2 soil moisture sensors,                       1 flow meter,                       1 PH sensor,                       1 liquid level sensor,                       1 valve + 1 pressure meter Solar powered.Using standard 10*2300mAh AA Size Ni-MH Battery (Not included) ， or AC powered.
